VARIO Bespoke Rooflights
VELUX VARIO Bespoke Rooflights
Customize a rooflight to suit your design, get the most out of daylight when you realize the potential of the new VELUX VARIO flat roof range.
Contact us now for advice and quotations on the installation of VELUX VARIO rooflights.
THE RECTANGULAR ONE
-
Fully bespoke sizes to suit your space and style, from 250 mm to 3000 mm with an impressive maximum 4 m2 edge-to-edge view of the skies above
-
Superior energy efficiency, achieving an astonishingly low thermal transmittance of Uw of 1.1 W/(m2K), according to EN 14351-1 and with a 0.5 Ug value
-
All our rooflights come with a laminated inner glazing as standard, for superior safety in the unlikely case of breakage
-
Includes a 150 mm insulated wooden upstand
THE SQUARE ONE
-
Fully bespoke sizes to suit your space and style, from 250 mm to 1600 mm with an impressive maximum of 2.6 m2 edge-to-edge view of the skies above
-
Superior energy efficiency, achieving an astonishingly low thermal transmittance of Uw 1.1 W/(m2K), according to EN 14351-1 and with a 0.5 Ug value
-
All our rooflights come with a laminated inner glazing as standard, for superior safety in the unlikely case of breakage
-
Includes a 150 mm insulated wooden upstand
THE LONG SLIM ONE
-
Fully bespoke sizes to suit your space and style, from 250 mm to 3000 mm with an impressive maximum of 2.25 m2 edge-to-edge view of the skies above
-
Superior energy efficiency, achieving an astonishingly low thermal transmittance of Uw 1.1 W/(m2K), according to EN 14351-1 and with a 0.5 Ug value
-
All our rooflights come with a laminated inner glazing as standard, for superior safety in the unlikely case of breakage
-
Includes a 150 mm insulated wooden upstand

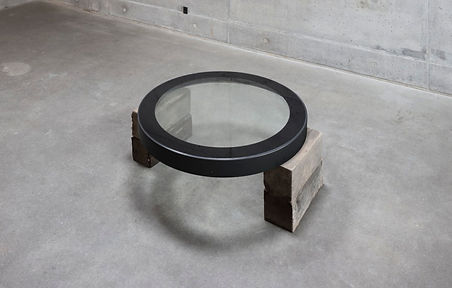

THE ROUND ONE
-
Fully bespoke sizes to suit your space and style, from 900 mm to 1350 mm with an impressive max of 1.43 m2 edge-to-edge view of the skies above
-
All our rooflights come with a laminated inner glazing as standard, for superior safety in the unlikely case of breakage
-
Includes a top plate with pre-installed gasket system for optimal air tightness
-
Energy efficient Ug value of 1.1
THE WALK ON ONE
-
Durable walk-on glazing for roof terraces and interior flooring
-
Fully bespoke sizes to suit your space and style, from 250 mm to 2000 mm with an impressive max of 2 m2 edge-to-edge view of the skies above
-
Energy efficiency of Uw 2.0 W/(m2K) according to EN 14351-1, and and with a Ug value of 1.3
-
All our rooflights come with a laminated inner glazing as standard, for superior safety in the unlikely case of breakage
-
Includes a 150 mm insulated wooden upstand
THE UNLIMITED ONE
-
Each Unlimited One module comes in fully bespoke sizes to suit your space and style, from 250 mm to 3000 mm, with a max of 4m2 edge-to-edge view of the skies above
-
Our cleverly engineered male/female connector system allows you to combine an endless amount of modules
-
Freedom to combine fixed and vented modules
-
Superior energy efficiency, achieving an astonishingly low thermal transmittance of Uw of 1.1 W/(m2K), according to EN 14351-1 and with a 0.5 Ug value
-
Vario by VELUX rooflights come with a laminated inner glazing as standard, for superior safety in the unlikely case of breakage
-
Includes a 150 mm insulated wooden upstand
FEATURES
Upstand
An upstand is what keeps the rooflight off the roof surface. It is required by building regulations for safety and weathering. Our expertly crafted, made-to-measure upstands are composed of a high-quality blend of materials, including waterproof plywood and insulation material for exceptional energy efficiency.
All our upstands have an in-built moisture barrier, ensuring no diffusion of moisture through the wall, and eliminating the risk of condensation. They also feature a plaster board connection, glass right to the edge on the inside and a light reflective RAL 9010 white colour on the inner. We have used all our years of experience to construct an upstand which is easily installed and provides the ultimate in both security and longevity.
Motorized
We make enjoying fresh air truly flawless, with motors that are swift, strong and move your rooflight softly up and down at the touch of a button. Our stylish rooflights designs offer a powerful lifting mechanism to elevate the majestic spans of glass, framed with built to last materials. Our motors are neatly concealed in our made-to-measure upstand, an elegant alternative to the normal visible motors used in many other products.
Enjoy a full, wide angle opening in just 40 seconds, for optimal ventilation. Finally, functionality is included to prolong the life of the mechanism, meaning you can enjoy your perfect daylight experience for longer.
Outer Frame
Our aluminium frames are designed to work perfectly with our high quality multi-layered glazed panes. They are crafted from highly durable and strong aluminium, selected for its high corrosion resistance, joint strength and malleability. All our frames are hand-welded on the inside of the corner sections to ensure a smooth surface and a completely tight connection.
They are treated with a polyester powder coating to ensure a hard and durable outside finish. The standard RAL powder coating on our frames is an understated 9005 Jet Black, but you can choose from a variety of special colours which can help to give your rooflight a distinctive personal touch.
Glazing
Superb specification glazing is a must for any rooflight to deliver on its full potential as a daylight design feature in your home. Vario rooflights come with either a double or triple-glazed low-energy laminated glazing unit, which are specially crafted to stay together in the unlikely event of a breakage, rather than shattering into small shards.
The triple-glazed units also offer a heat-strengthened middle glass layer and the cavity between the panes is filled with insulating argon gas as standard. All glazing units have a warm edge spacer to ensure a thermal breakage. Warm edge technology minimises the risk of condensation at the pane edges and provides the glazing units with the most durable insulation capabilities.
